Expansion Tank

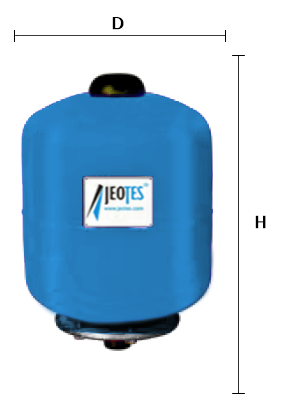

10 BAR TANK FOOTLESS & HORIZONTAL SERIES

TECHNICAL SPECIFICATIONS OF CLOSED EXPANSION VESSELS

MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	DIAMENTIONS
MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	Dia	Height
JTM 10 K	8 LT	2	1’’	220	320
JTM 10 K	12 LT	2	1’’	220	380
JTM 10 K	19 LT	2	1’’	280	430
JTM 10 K	24 LT	2	1’’	280	470
JTM 10 K	24 KÜRE	2	1’’	360	325
JTM 10 K	35 LT	2	1’’	380	470
JTM 10 K	50 LT	4	1’’	380	560

TECHNICAL SPECIFICATIONS OF HORIZONTAL CLOSED EXPANSION VESSELS

MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	DIAMENTIONS
MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	Dia	Height
JTM 10 Y	24 LT	2	1’’	280	470
JTM 10 Y	50 LT	4	1’’	380	620
JTM10 Y	60 LT	4	1’’	380	670
JTM 10 Y	80 LT	4	1’’	430	720
JTM 10 Y	100 LT	4	1’’	460	800

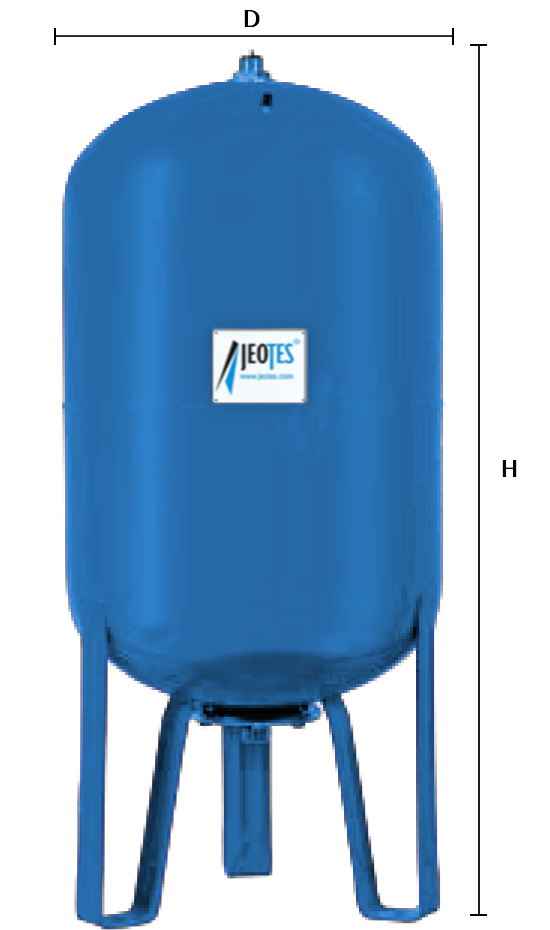

10 BAR VERTICAL TANK SERIES

TECHNICAL SPECIFICATIONS OF VERTICAL CLOSED EXPANSION VESSELS

MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	DIAMENTIONS Dia Height
JTM 10	50 LT	4	1’’	380	750
JTM 10	60 LT	4	1’’	380	810
JTM 10	80 LT	4	1’’	430	960
JTM 10	100 LT	4	1’	460	990
JTM 10	150 LT	4	1’	500	1100
JTM 10	200 LT	4	1-1/4’’	590	1120
JTM 10	300 LT	4	1-1/4’’	640	1230
JTM 10	500 LT	4	1-1/4’’	750	1550
JTM 10	750 LT	4	2’’	750	1950
JTM 10	750 LT	4	2’’	800	1850
JTM 10	900 LT	4	2’’	800	1950
JTM 10	1000 LT	4	2’’	800	2180
JTM 10	1500 LT	4	2’’	960	2380
JTM 10	2000 LT	4	2’’	1100	2520
JTM 10	3000 LT	4	2-1/2’’	1200	2800
JTM 10	4000 LT	4	3’’	1450	3100
JTM 10	5000 LT	4	3’’	1450	3720
JTM 10	10000 LT	4	DN 100	1600	5750

16 BAR VERTICAL TANK SERIES

TECHNICAL SPECIFICATIONS OF VERTICAL CLOSED EXPANSION VESSELS

MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	DIAMENTIONS
MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	Dia	Height
JTM 16	50 LT	4	1’’	380	750
JTM 16	60 LT	4	1’’	380	810
JTM 16	80 LT	4	1’’	430	960
JTM 16	100 LT	4	1’	460	990
JTM 16	150 LT	4	1’	500	1100
JTM 16	200 LT	4	1-1/4’’	590	1120
JTM 16	300 LT	4	1-1/4’’	640	1230
JTM 16	500 LT	4	1-1/4’’	750	1550
JTM 16	750 LT	4	2’’	800	1850
JTM 16	900 LT	4	2’’	800	1950
JTM 16	1000 LT	4	2’’	800	2180
JTM 16	1500 LT	4	2’’	960	2380
JTM 16	2000 LT	4	2’’	1100	2520
JTM 16	3000 LT	4	2-1/2’’	1200	2800
JTM 16	4000 LT	4	3’’	1450	3100
JTM 16	5000 LT	4	3’’	1450	3720
JTM 16	10000 LT	4	DN 100	1600	5750

25 BAR VERTICAL TANK SERIES

TECHNICAL SPECIFICATIONS OF VERTICAL CLOSED EXPANSION VESSELS

MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	DIAMENTIONS
MODEL	VOLUME	PRE-CHARGE PRESSURE	CONNECTION	Dia	Height
JTM 25	50 LT	4	1’’	380	750
JTM 25	60 LT	4	1’’	380	810
JTM 25	80 LT	4	1’’	450	910
JTM 25	100 LT	4	1’	450	990
JTM 25	150 LT	4	1’	500	1100
JTM 25	200 LT	4	1-1/4’’	600	1120
JTM 25	300 LT	4	1-1/4’’	640	1230
JTM 25	500 LT	4	1-1/4’’	750	1550
JTM 25	750 LT	4	2’’	800	1850
JTM 25	900 LT	4	2’’	800	1950
JTM 25	1000 LT	4	2’’	800	2180
JTM 25	1500 LT	4	2’’	960	2380
JTM 25	2000 LT	4	2’’	1100	2520
JTM 25	3000 LT	4	2-1/2’’	1200	2800
JTM 25	4000 LT	4	3’’	1450	3100
JTM 25	5000 LT	4	3’’	1450	3720
JTM 25	10000 LT	4	DN 100	1600	5750

STAINLESS STEEL CLOSED EXPANSION TANKS

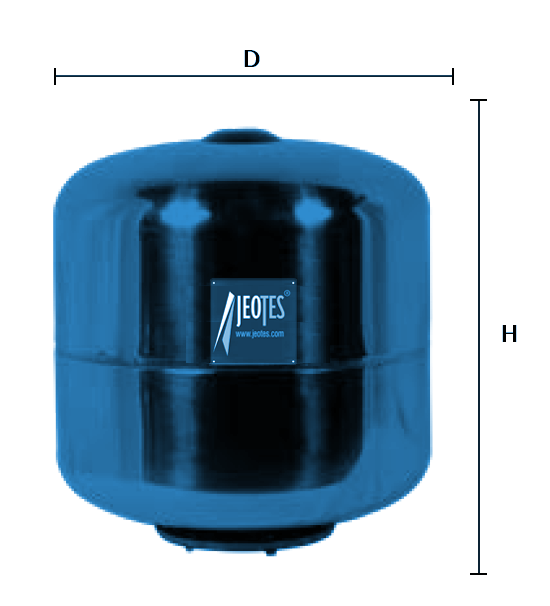

TECHNICAL SPECIFICATIONS OF STAINLESS STEEL CLOSED EXPANSION VESSELS

MODEL	D(MM) Diameter / D (mm)	HEIGHT	CONNECTION	MEMBRANE TYPE
JTM 24 LT	260	495	1’’	EPDM
JTM 50 LT	380	750	1’’	EPDM
JTM 60 LT	380	810	1’’	EPDM
JTM 80 LT	460	840	1’’	EPDM
JTM 100 LT	460	935	1’’	EPDM
JTM 150 LT	500	1000	1’’	EPDM
JTM 200 LT	590	1090	1-1 / 4’’	EPDM
JTM 300 LT	640	1210	1-1 / 4’’	EPDM
JTM 500 LT	750	1520	1-1 / 4’’	EPDM
JTM 750 LT	800	1920	2’’	EPDM
JTM 1000 LT	800	2250	2’’	EPDM
JTM 1500 LT	960	2400	2’’	EPDM
